Galvanized steel structures and painted steel structures are both commonly used in construction, but they differ in terms of coating materials, protection mechanisms, durability, and maintenance requirements. Here's a detailed comparison:

1. Coating Material

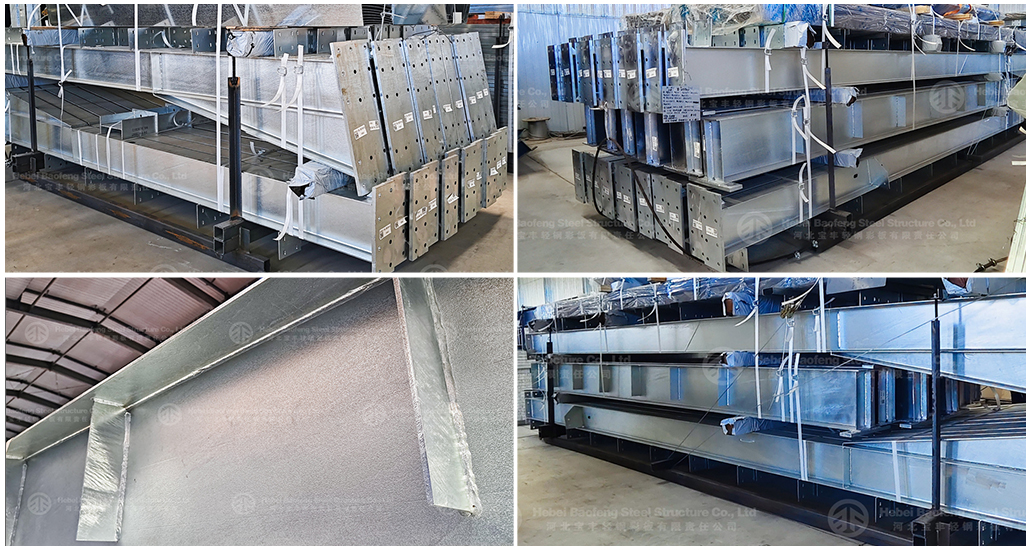

Galvanized Steel Structure:

The steel is coated with a layer of zinc through a process called galvanization (hot-dip galvanizing or electro-galvanizing).

Zinc acts as a sacrificial coating, protecting the steel from corrosion.

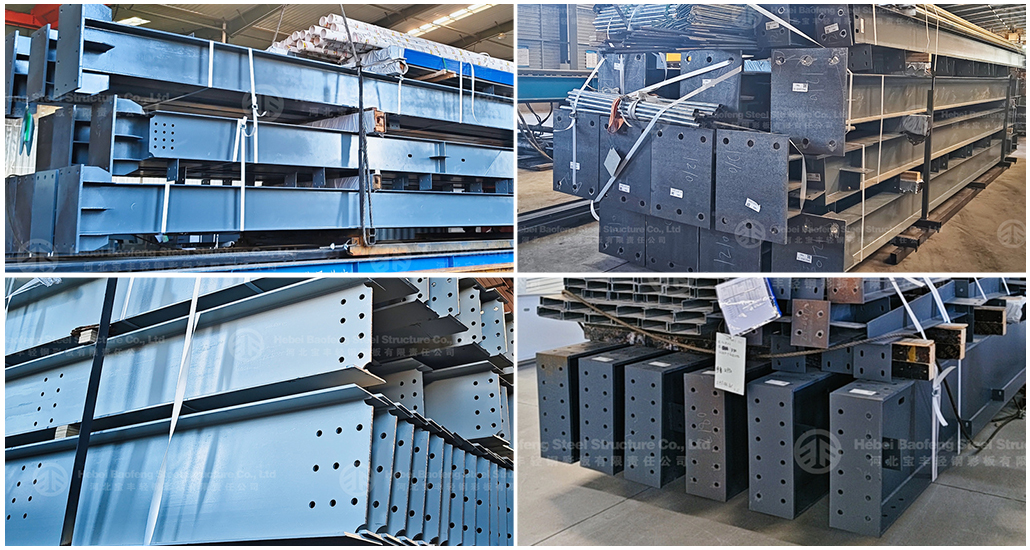

Painted Steel Structure:

The steel is coated with a layer of paint, which can be made from various materials such as epoxy, polyurethane, or acrylic.

Paint provides a barrier against moisture and oxygen, preventing rust.

2. Corrosion Protection

Galvanized Steel Structure:

Zinc acts as a sacrificial anode, meaning it corrodes first to protect the underlying steel.

This provides excellent long-term corrosion resistance, especially in harsh environments like coastal areas or industrial settings.

Painted Steel Structure:

Paint provides a physical barrier but does not offer sacrificial protection.

If the paint is scratched or damaged, the exposed steel is vulnerable to rust.

Painted structures are more susceptible to corrosion in humid or corrosive environments unless regularly maintained.

3. Durability

Galvanized Steel Structure:

Galvanized coatings are highly durable and can last for decades (20–50 years or more) depending on the environment and thickness of the zinc layer.

It requires minimal maintenance over its lifespan.

Painted Steel Structure:

Painted coatings typically last 5–15 years, depending on the quality of the paint, application, and environmental conditions.

Regular repainting is required to maintain protection.

4. Maintenance

Galvanized Steel Structure:

Requires little to no maintenance over its lifespan.

If the zinc coating is damaged, it can self-heal to some extent due to the sacrificial nature of zinc.

Painted Steel Structure:

Requires regular inspection and repainting to address wear, scratches, or fading.

Maintenance costs are higher due to the need for periodic touch-ups or full repainting.

5. Cost

Galvanized Steel Structure:

Higher initial cost due to the galvanization process.

However, the long-term savings in maintenance make it cost-effective over time.

Painted Steel Structure:

Lower initial cost compared to galvanized steel.

However, ongoing maintenance costs (painting, repairs) can add up over time.

6. Aesthetic Appeal

Galvanized Steel Structure:

Has a shiny, metallic appearance that may not be suitable for all architectural designs.

Can develop a matte gray patina over time.

Painted Steel Structure:

Offers a wide range of colors and finishes, making it more versatile for aesthetic purposes.

Can be customized to match specific design requirements.

7. Environmental Impact

Galvanized Steel Structure:

Zinc is recyclable, and the galvanization process has a lower environmental impact compared to frequent repainting.

However, the galvanization process itself involves energy-intensive steps.

Painted Steel Structure:

Paint contains chemicals and solvents that can have environmental impacts if not disposed of properly.

Frequent repainting increases waste and resource consumption.

8. Application Suitability

Galvanized Steel Structure:

Ideal for outdoor applications, industrial settings, and areas with high exposure to moisture, salt, or chemicals.

Commonly used in bridges, roofing, and marine structures.

Painted Steel Structure:

Suitable for indoor applications or environments with low corrosion risk.

Often used in architectural projects where aesthetics are a priority.

Summary

Galvanized Steel: Best for long-term durability, low maintenance, and harsh environments.

Painted Steel: Best for aesthetic flexibility and lower initial costs, but requires regular maintenance.

The choice between the two depends on the specific requirements of the project, including budget, environmental conditions, and desired lifespan.
